1/2 Deep & Shallow Socket Tray | Drawer Organiser | Toolbox Organiser

Description

1/2″ Deep & Shallow Socket Tray | Drawer Organiser | Toolbox Organiser

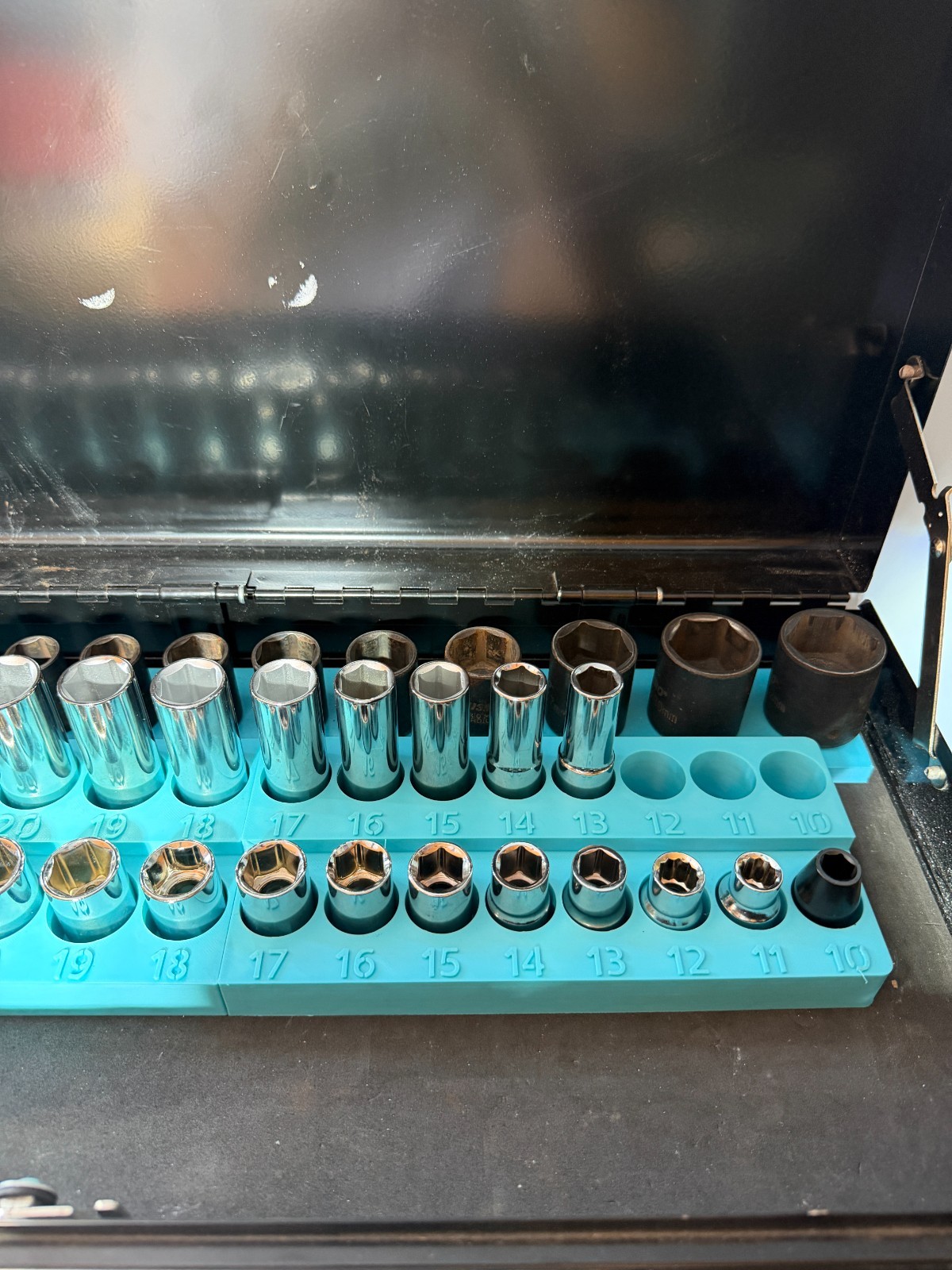

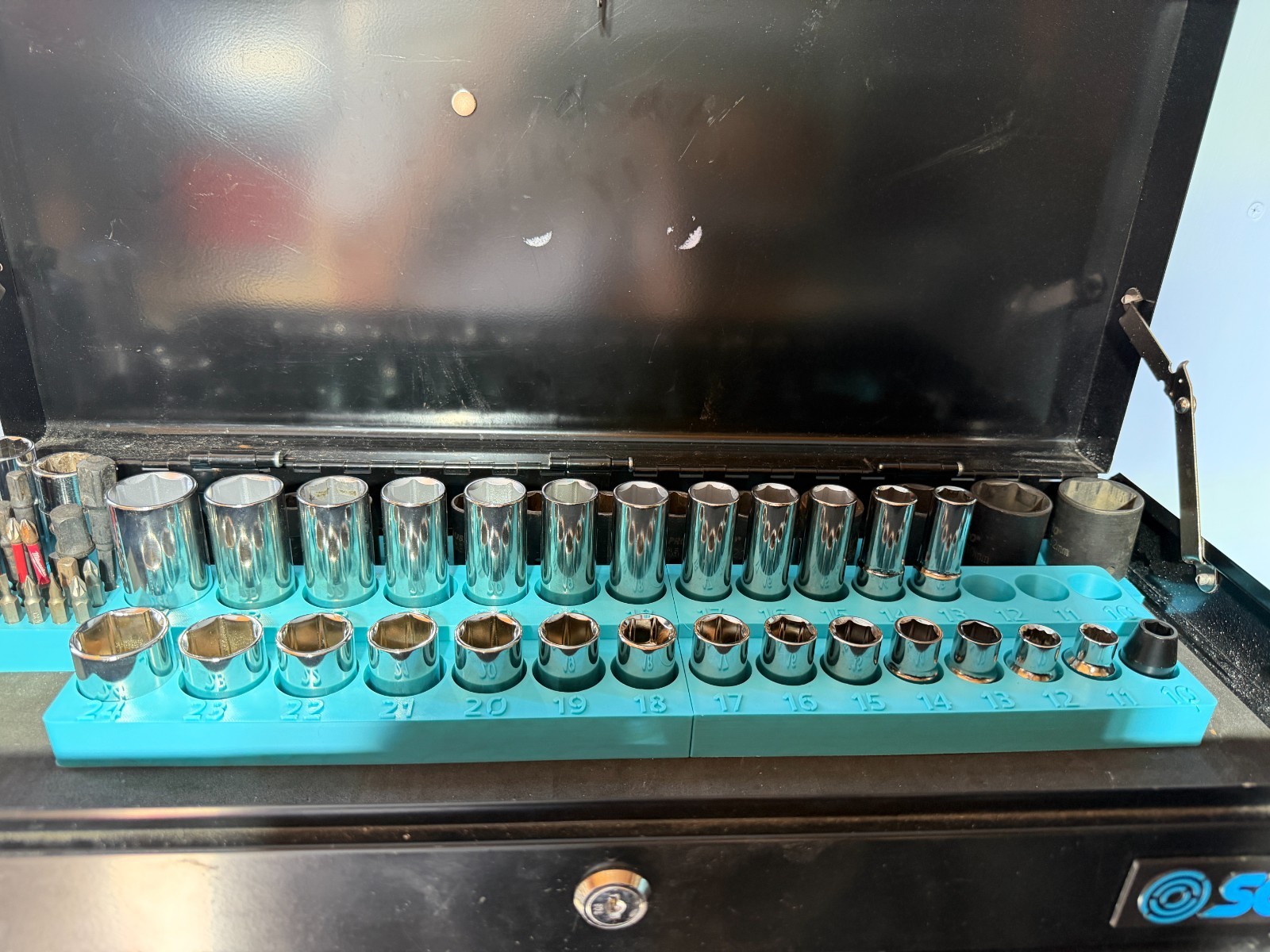

Keep your 1/2″ drive deep and shallow sockets neat, organised and easy to access with this 3D printed socket tray. Designed to hold metric sockets from 10mm to 24mm, this tray helps create a cleaner toolbox drawer setup and makes it much easier to find the socket size you need.

This organiser is designed for both deep sockets and shallow sockets, keeping them together in one tidy layout. Each socket size has its own labelled position, helping reduce drawer clutter, loose sockets and wasted time searching through your toolbox.

Key Features

• Designed for 1/2″ drive metric sockets
• Holds deep and shallow sockets
• Socket sizes from 10mm to 24mm
• Holds up to 30 sockets total
• Designed to hold 15 shallow sockets and 15 deep sockets
• Each socket position is labelled by size
• Comes in 2 sections that snap together
• Helps keep sockets visible, tidy and easy to access
• Ideal for toolbox drawers, tool chests, garages, vans and workshops
• Great for mechanics, technicians, tradespeople and DIY users
• 3D printed and made to order
• Available in a range of colours

Important: Not Magnetic

This socket tray is not magnetic. It is designed as a drawer and toolbox organiser to keep sockets neatly positioned in their own labelled slots.

If you are using this tray in a mobile setup, van or tool chest that is moved regularly, please make sure the sockets are seated correctly and check your drawer or toolbox layout before transport.

Product Size

Approximate dimensions:

• Part 1: 251.3mm long x 100mm wide x 31mm high
• Part 2: 222mm long x 100mm wide x 31mm high
• Combined length: approximately 473.3mm when joined together

The tray is supplied in 2 joining sections. The sections snap together to create one longer socket organiser, making it suitable for larger socket sets while still being practical to 3D print and handle.

Designed To Hold

• 1/2″ drive shallow sockets: 10mm to 24mm
• 1/2″ drive deep sockets: 10mm to 24mm
• Socket sizes: 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, 18mm, 19mm, 20mm, 21mm, 22mm, 23mm and 24mm

Please check your socket set before ordering. Fit may vary depending on socket brand, wall thickness, socket style and manufacturing tolerances.

Two Section Snap Together Design

This tray comes in 2 separate sections that snap together to create the full organiser. This makes the tray easier to print while still giving you a full size storage solution for deep and shallow sockets.

• Two part design for easier printing and handling
• Sections snap together to form one longer tray
• Labelled layout helps keep socket sizes in order
• Useful for organising larger 1/2″ drive socket collections

Labelled Socket Layout

Each position is labelled with the socket size, helping you quickly find the correct socket and spot any missing sizes. This is especially useful in busy workshops, garages and tool drawers where sockets can easily get mixed up.

• Helps identify socket sizes quickly
• Keeps deep and shallow sockets stored together
• Reduces loose sockets in drawers
• Makes your toolbox look cleaner and more professional
• Helps keep your socket set complete and organised

Suitable For

• 1/2″ drive metric socket storage
• Deep socket organisation
• Shallow socket organisation
• Toolbox drawer organisation
• Tool chest storage
• Garage and workshop storage
• Van tool storage
• Mechanics, technicians, tradespeople and DIY users

Benefits Of Using This Socket Tray

• Better organisation: keeps sockets neatly arranged by size
• Faster access: quickly find the socket you need
• Labelled positions: makes missing sockets easier to spot
• Deep and shallow storage: keeps both socket types together
• Cleaner drawer setup: reduces loose socket clutter
• Two section design: snaps together to create the full tray
• Professional storage: gives your toolbox a tidy, organised look

What’s Included

• 1 x 1/2″ deep and shallow socket tray
• 2 x snap together tray sections

Please note: sockets, ratchets, tools, toolbox and accessories are not included. This listing is for the 3D printed socket tray only. Any photos showing sockets or tools are for display and size example only.

Made To Order

This item is 3D printed and made to order.

Small layer lines, slight surface marks, minor texture differences or colour shade variations may be visible due to the 3D printing process. These do not affect normal use and are part of the nature of 3D printed products.

Custom Colours And Custom Prints

If you would like a different colour, custom size or another item 3D printed, please contact us before ordering.

Many of our products are created from customer requests, so we are happy to discuss custom socket trays, toolbox organisers, drawer inserts and workshop accessories.

Please Check Before Ordering

• This tray is designed for 1/2″ drive metric sockets
• Designed for socket sizes 10mm to 24mm
• This tray is not magnetic
• This listing is for the tray only
• Sockets, ratchets, tools and toolbox are not included
• Fit may vary depending on socket brand, socket style and manufacturing tolerances
• Please check your drawer size before ordering
• Always make sure the tray and sockets are seated securely before moving your toolbox
• This product is designed as a storage organiser only
• It should not be used as safety equipment or impact protection
• Do not place sockets or tools where falling could cause injury or damage
• Colours may appear slightly different depending on screen settings and filament availability

As this item is made to order, please make sure you check compatibility, confirm your socket sizes and select the correct colour before purchasing.

Order Yours Today

Upgrade your toolbox with a 1/2″ deep and shallow socket tray and keep your 10mm to 24mm metric sockets organised, labelled and ready to use.

Design Attribution & Licence

This product is a 3D print based on “1/2 Deep/Shallow Socket Tray” by Diego C.

Original design:
https://makerworld.com/en/models/402963-1-2-deep-shallow-socket-tray#profileId-304646

Licensed under Creative Commons Attribution-ShareAlike 4.0 International:
https://creativecommons.org/licenses/by-sa/4.0/

Changes: None, except technical preparation required for 3D printing.

Printed and sold independently by Layered Works. The original designer does not endorse or sponsor this product.
